DSP30F2010 SINE WAVE INVERTER TECHNOLOGY

We offer an online training on sine wave inverter technology through our social media platforms

§ Specifications for dsp30f2010 pure sine wave Inverter Technology:

Output Waveform: Pure sine wave 50-60hz
12v/24v/48v/96V DC input
220v-240v AC output
Output frequency: 50Hz
Rated Power: 850VA - 7.5KW
Work Efficiency: 85%-95%
User friendly operation
LCD/LED indication DISPLAY
Full power and soft start
High transformer efficiency, fast start
Strong adaptability and stability
Safe and reliable with built-in fuse
Temperature controlled fan, safe & efficient
Low voltage protection
Over voltage protection 400vac
Over load protection (adjustable with a keypad)
Short circuit protection
Input reverse connection protection
Over temperature protection
20khz switching frequency
Now you can be a Technology Independent manufacturer with our Solar and dsp sine wave Inverter Technology.

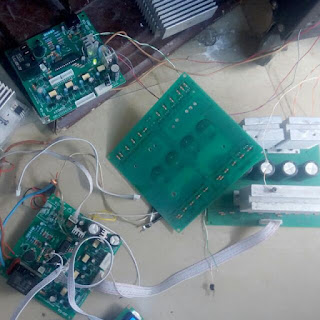

This inverter is best suited for manufacturing of domestic and office applications as it is simple and easy. It consists of only few components which are easily available, it has only simple components which are single sided PCB card. This board will be completed by mounting of heatsink along with MOSFET and soldering of few components. It contains LCD which displays all the parameters of the system and gives an indication about any error during the functioning of inverter. A 16 character double line type LCD will show the status of the inverter. It is very simple to set the values in menu driven set-up mode and is very easy to handle also by using a three button keypad.
SETUP COST AND EQUIPMENTS:
soldering irons, digital multi-meters, RPS, Glue guns and etc. which cost less

How to Build a Solar dsp Inverter at Low Cost with Our Technology?

For Production of 1000 watt Solar Inverters the list is as follows:

Inverter Card

Solar Zero Drop Card

Copper Transformer

Casing & Others

Note:

Above list is for 12V / 850VA with 30 Amps solar Charge Controller.

Production Cost may reduce up If you go for Aluminium Transformer.

Important Precautions to be Taken to Maintain this Solar Inverter:

Mains switch should be kept in ON position

Mains input should always be connected, to keep the battery in charging condition.

Water or any other liquids should never enter into circuit

This system installation place should be well ventilated and it should be easily accessible for servicing.

How to Contact Us:

Are you looking for solar Inverter Technology Transfer? Then you came to the right place. We have a sophisticated technology with us. If you are really interested to set up a Manufacturing unit,
CALL/WHATSAPP : +2347018399701
JOIN OUR ONLINE TRAINING VIA WHATSAPP LINK : (https://chat.whatsapp.com/I3iz3OX7PnhE0nAQO4UvXA)

FOR HEX FILES, SHCEMATICS AND CIRCUIT DIAGRAM YOU CAN ORDER FOR UR EMPTY PCB PANEL AT A CHEAP PRICE
https://chat.whatsapp.com/I3iz3OX7PnhE0nAQO4UvXA

Vidoe setup link: https://youtu.be/VCAVV20hHZA
